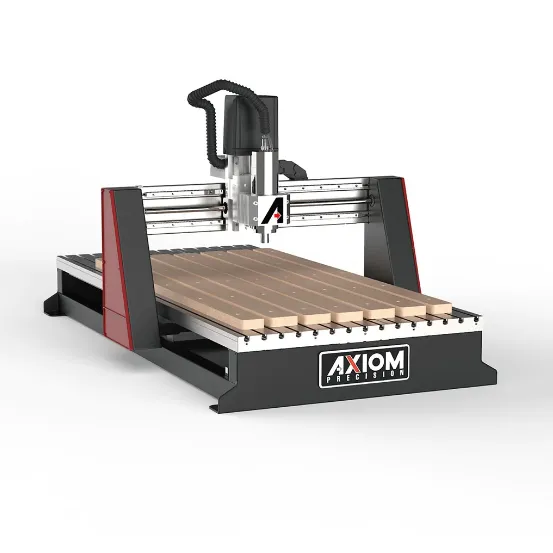

The new Axiom Precision AutoRoute PROV5 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.
The new PRO also has a fresh new look.
These new Axiom CNC machines are now stronger, faster, and easier to maintain than ever before.
The updated PRO series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.

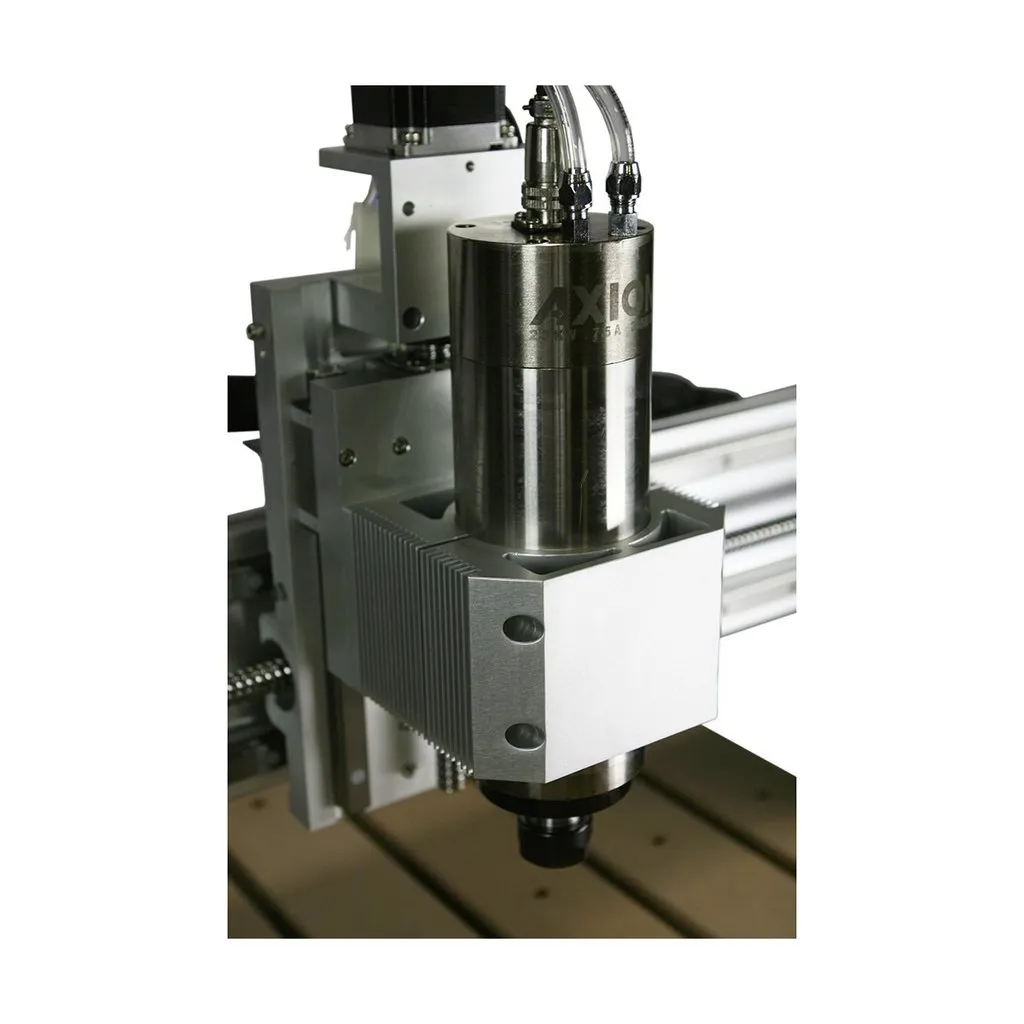

Our PRO series CNC routers provide a full 6.5'' of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.
Each PRO series machine is also prewired to accept our optional Rotary Kit.

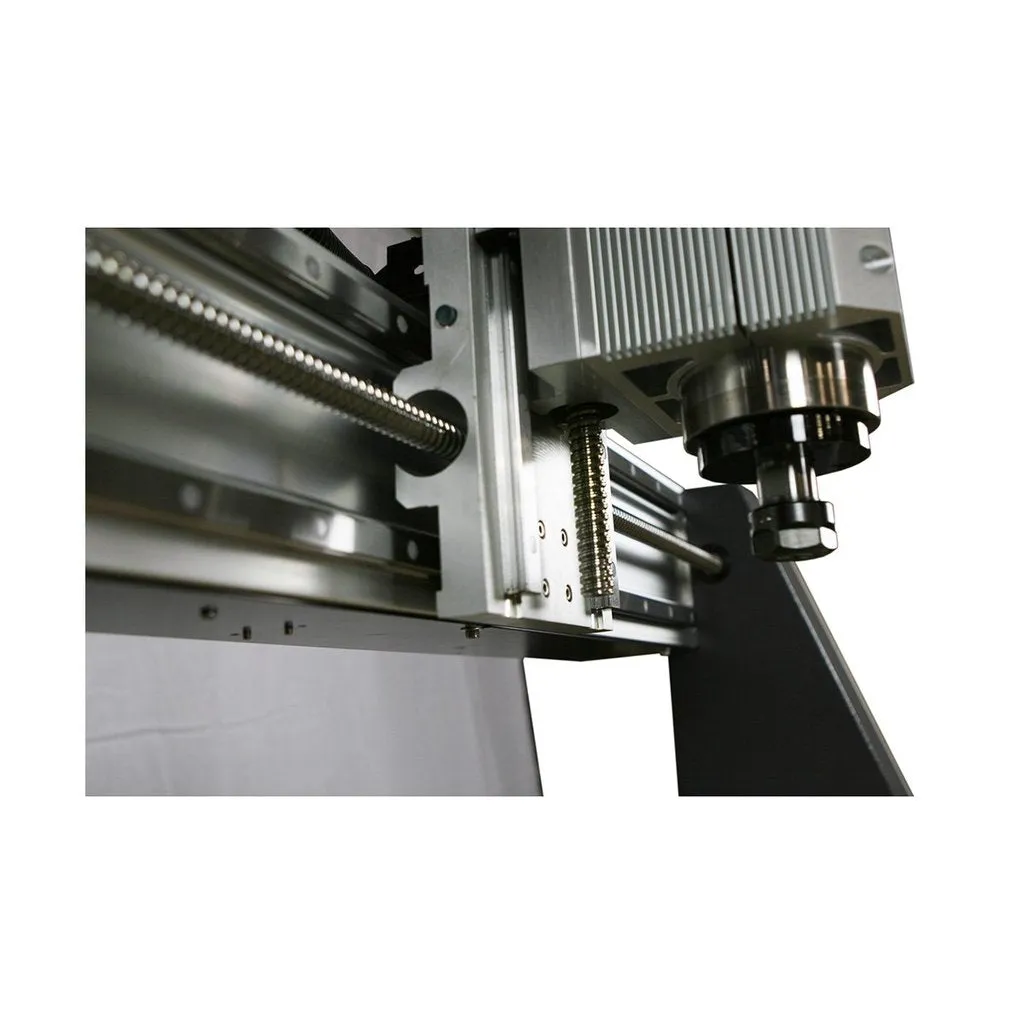

The Axiom AutoRoute PRO Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.
In addition, the integrated MDF spoil boards provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle.

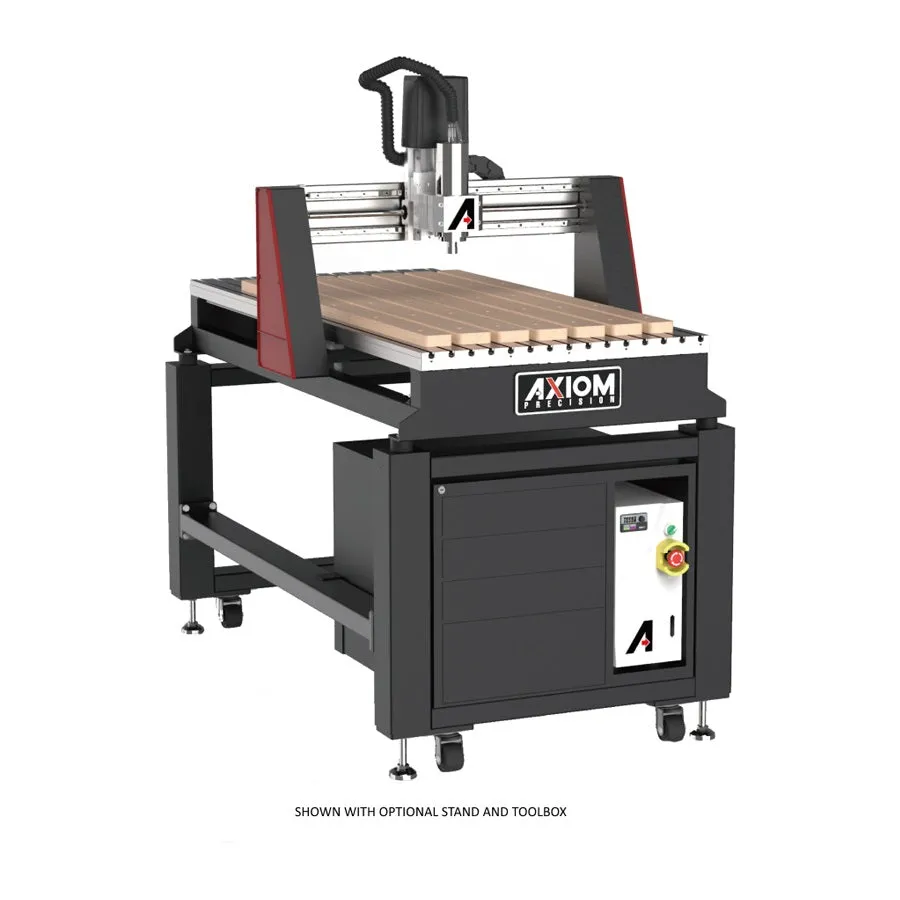

- Optional Stand and Tool Box available
Please allow 1-2 weeks delivery - Flat Rate of $495 for Shipping!!

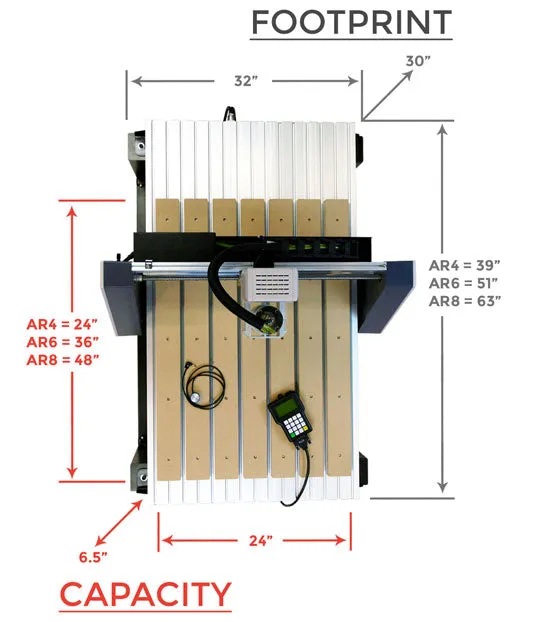

| X axis travel | 24" (610mm) |
| Y axis travel | AR8 = 48" (1210mm) |
| Z axis travel | 6" (153mm) |
| C axis travel | 360deg |
| Table work area | AR8 = 28.4" x 63" |
| Spindle Configuration | ER20 |
| Included Collets | 1/4" & 1/2" |
| Electro Spindle | 2.2KW |
| Spindle speed | 0~24000 RPM |
| Rapid feed rate | 200 IPM (5 MPM) |
| Precision Linear Guideway | X/Y/Z |
| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | /- .00393" (0.10mm) |
| Power requirements | 220 V,50~60 Hz, 10A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum alloy gravity cast |
| Gantry Clearance | 6.5" (165.1mm) |
| Machine Base | All Welded Steel |
| Frame Machine Dimensions | AR8 = 62.99"L x 37.36"W x 30.27"H |
| Shipping Dimensions | AR8 = 65"L x 39"W x 33"H |
| Shipping Weight | AR8 = 405 lbs |

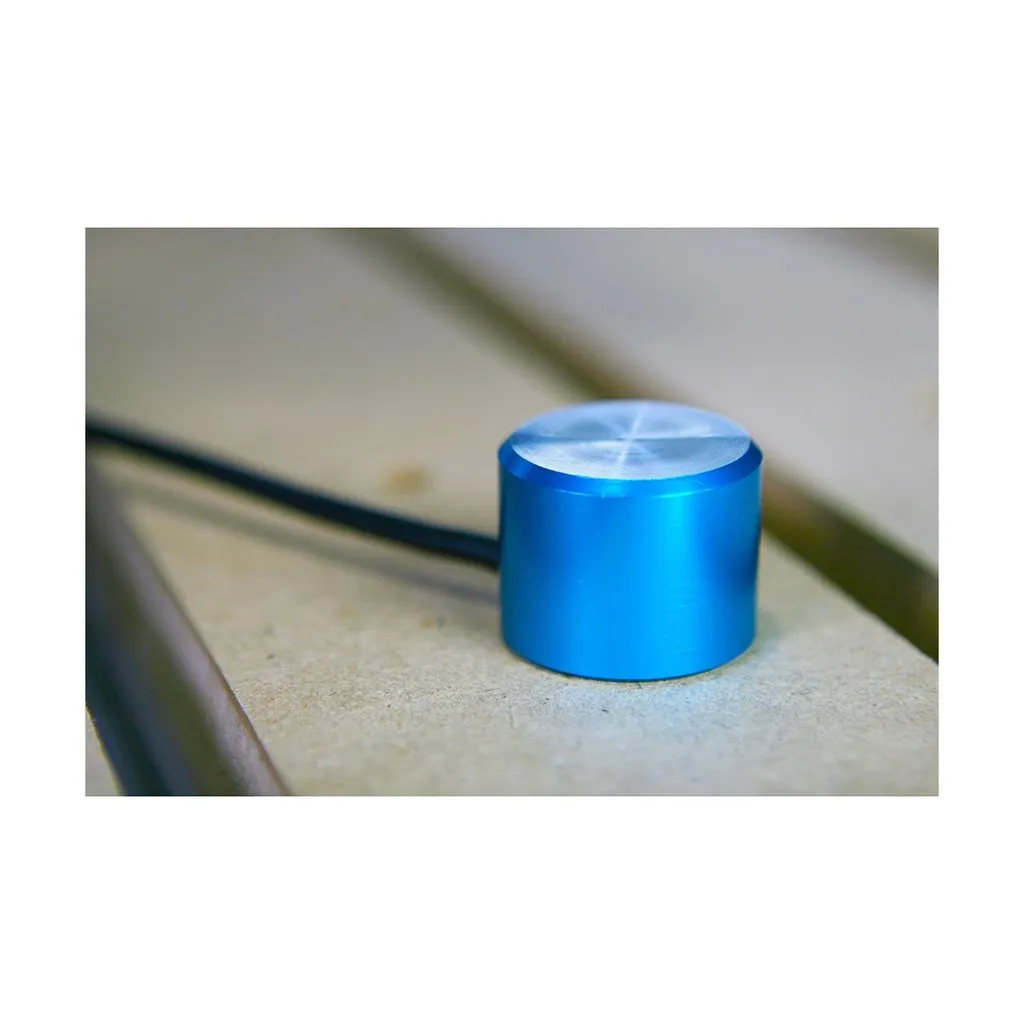

| Tool Touch-Off Device | Included |
| Onboard Cooling System | Included |

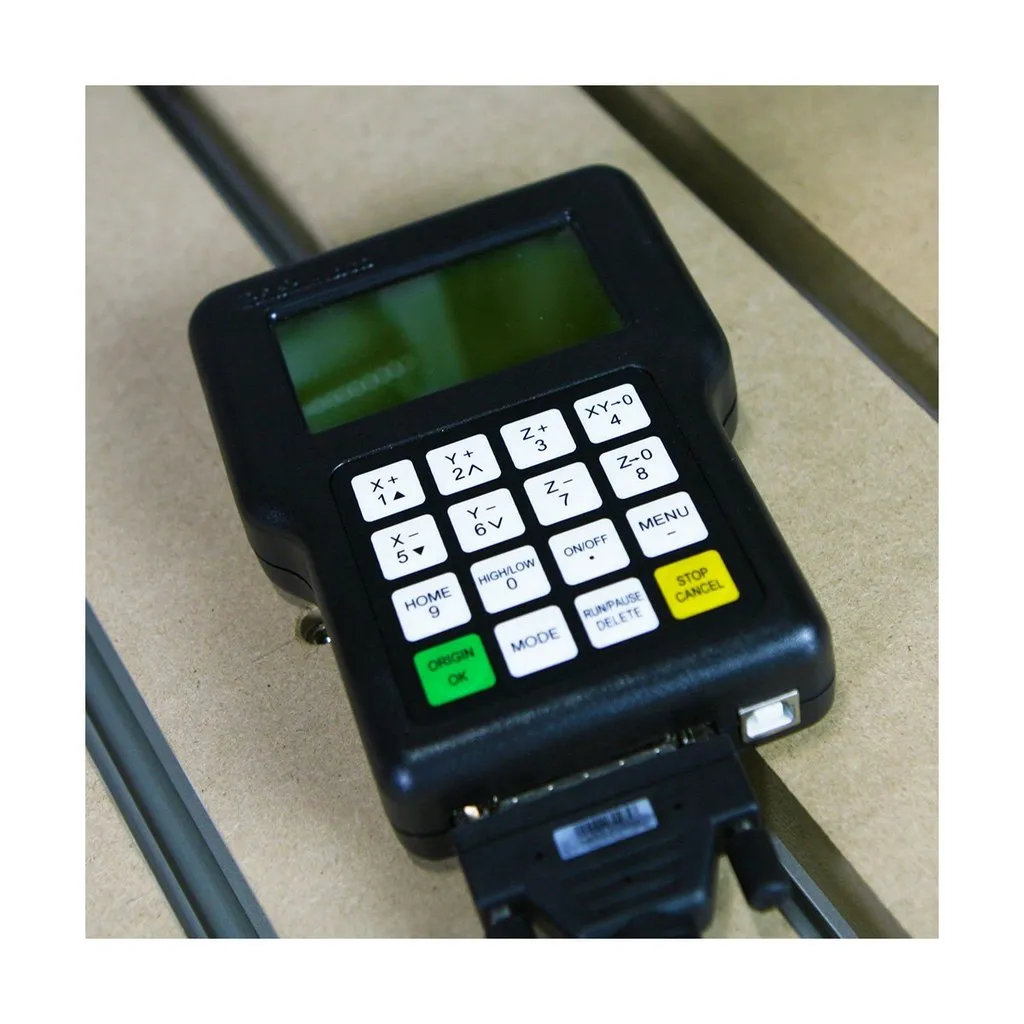

| Controller | Richauto B18 DSP 4-Axis Controller CNC motion control system USB port for easy file transfer. |
