DM-FMT
Del Medical FMT Systems are high-performance suites for hospitals, imaging centers, orthopedic and specialty medical practices with high patient volume. Freestanding tube stands require only a floor mounted rail for the tube stand and are the ideal radiographic solution when ceiling height is restricted, offering a best in class requirement of only 87 inches (7.25'), while providing the greatest focal spot travel distance.

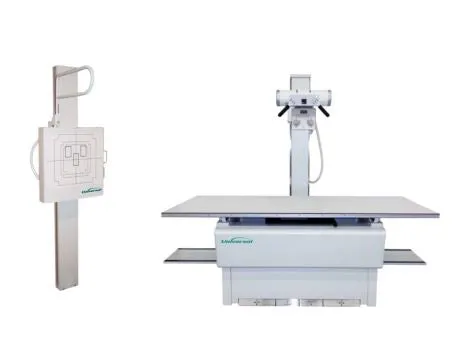

DM-FMT Del Medical FMT - Floor Mounted Tube Stand
Item Features:
- Platform Tube Mount
- A telescopic vertical column with tube support and operator controls
- 10' (305cm) longitudinal rail standard
- Focal Spot Travel
- Transverse Travel 10.75 (27cm)
- Vertical Travel 62.75 (160cm)
- Minimum ceiling height = 87 (221cm)
- Pressure activated 180° column rotation
- - ±180° tube rotation about the horizontal axis
- - Control buttons for the following actions: (located on the control handle)
- - Longitudinal lock, transverse lock, vertical lock, column rotation roll lock, all locks and automatic detent stops (both horizontal and vertical)
- Centering detent aligns focal spot to the image receptor
- Electromagnetic Locks
COL-RALCO-M: Ralco Certified Manual Collimator
- External adjustment of mirror angulation
- High luminosity power LED for light field projection. LED cluster life: 50,000 hours
- A timer that limits cluster ON time to 30 seconds
- Radiation shielding: 150 kVp - 4 mA
- Minimum inherent filtration 2mm aluminum equivalent. (1mm on request)
- Continuous film coverage from min. 00 x 00cm to max. 48 x 48cm at 100cm FFD (SID)
Del Medical Anthem 40kW, 500mA, High-Frequency Generator (Single or Three Phase)
Item Features:
- 125kVp
- Anatomical Programming updatable by SD Card or PC Connection
- LCD display provides two and three-point operation for individual control of exposure parameters
- Integrated 24 volt AC/DC power supply
- Integrated line match transformer
- Continuous kV and mA stabilization
- Automatic line voltage compensation
- Tube protection software and circuitry
- 208v to 480v Range
Toshiba E7242FX Tube - 90º cable arms, 0.6x1.5mm FS, 200kHU, 125kVp, 14º target, 3 anode
DM-CAB-HV-25: 25' Generator High Voltage Cables, 150 kVp
DM-EV800: Del Medical EV800 Elevating Table with Four-Way Float Top
- 800 lb. (363 kg) patient load capacity
- 86.5 (220cm) x 35.9 (91cm) fiber resin table-top
- Height adjustment: 21.75 (55.25cm) to 33.77 (85.8cm)
- Tabletop movement: /- 21.25 (54cm) longitudinal, /- 4.5 (11.4cm) transverse
- Bucky travel: /- 8.5 (22cm) longitudinal
- Quiet duty motor with efficient elevating action
- Recessed foot treadle lock controls for longitudinal and transverse, tabletop up/down movement
- Integral collision safety sensors
DM-TBL-GC-TRAY: Grid cabinet, 17” x 17” (43cm x 43cm) and One deluxe, heavy-duty manual cassette tray
GR-103-10-34-02: 103 Line, 10:1 Ratio, 34-44" Grid
DM-VS300: Del Medical VS300 Wall Stand
- Slender Column Design
- Electric "Fail Safe” locks; only require power to move a column
- Ergonomic release handle
- Lateral patient handgrips included (standard)
- Height: 84” (213.4cm) (includes vertical travel)
- Depth: 13.4” (34cm)
- Width: 24.6” (62.5cm)
- Weight (with receptor): 200 lbs (91kg)
- 0.4mm front panel aluminum equivalency
DM-WALL-GC-TRAY: Grid cabinet, 17” x 17” (43cm x 43cm) and One deluxe, heavy-duty manual cassette tray
Overhead Handgrips for VS300 (Required)
