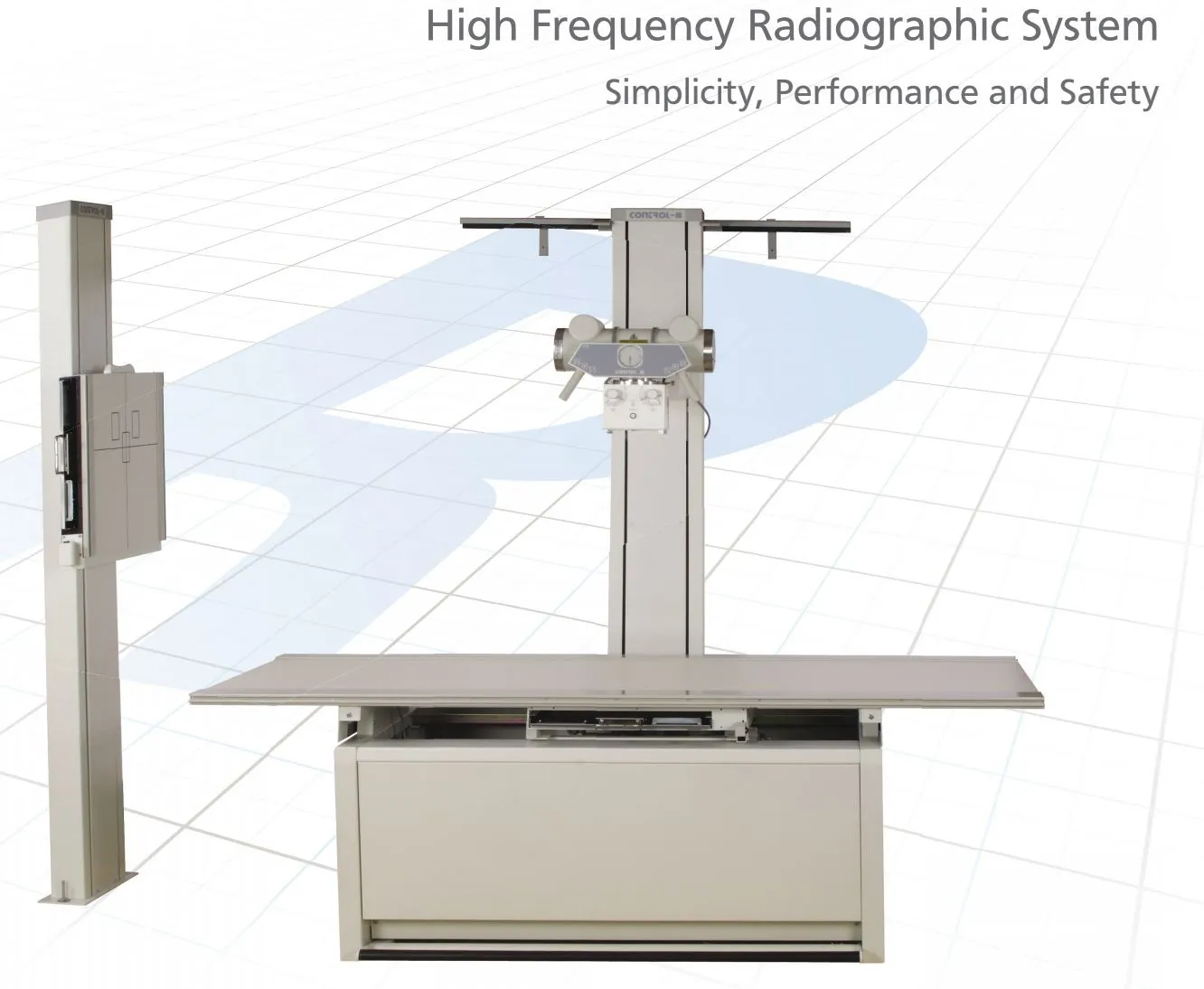

CMP 200-40 40 kW, 125 kV, 500 mA, .1 - 500 mAs ultra-high frequency generator.
1024 APR techniques. Power requirements: 1 x 208/230 VAC, 3 x 208/230 VAC or 3 x 400/480 VAC. Std speed.
1-year warranty
E7239X-CX
125 kVp, 140KHU, X-ray Tube, Standard Speed. 1.0/2.0 Focal Spots. LS.|
1-year pro-rated warranty.
Collimare CML150-001C
Certified manual LED lighted crosshair laser guided collimator. 150 kVp, 150 kW, 24 V AC/DC.
5-year warranty
500-20
20' H.V. cable pair with Federal terminals on both ends.
ETS 05
Floor-to-wall mounted tube stand with an installed column height of 91", longitudinal travel of 78" and vertical travel of 62".
Electromagnetic locks. Includes tube port mount.

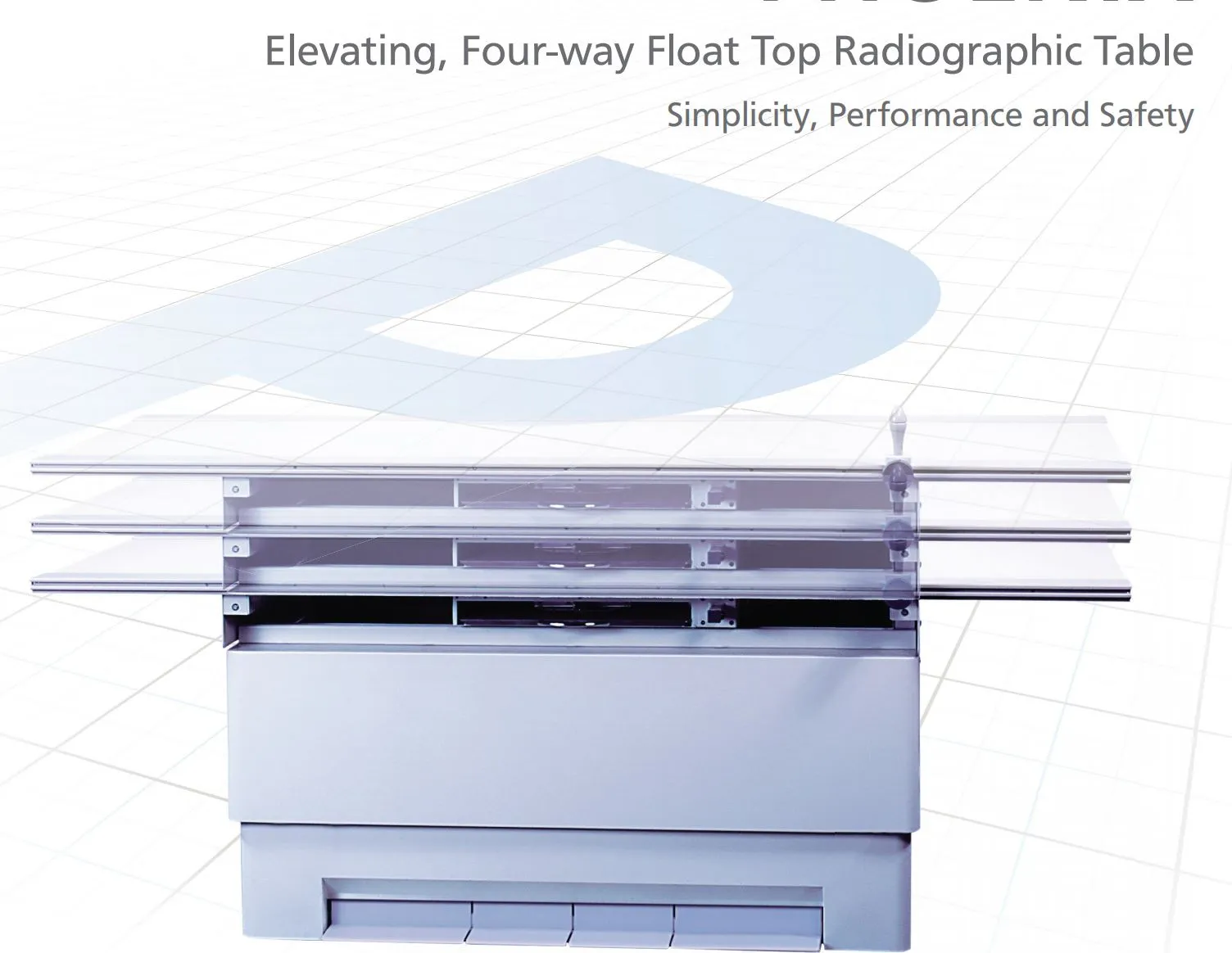

Elevating Table
- Non-tilting radiographic Bucky table with a 4-way floating top. 86" x 32" tabletop travels 43" longitudinally, horizontally ±4.75" and has a tabletop film distance of 2.4".
- Patient weight limit of 500 lbs.
- 5-year pro-rated warranty.
- Bucky size grid cabinet.
- Non-size sensing heavy duty cassette tray for universal 17"x17" Bucky.
- 103 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets.
- Focus range 34-44”
- upgrade to elevating (6-way) table with 660 lb capacity

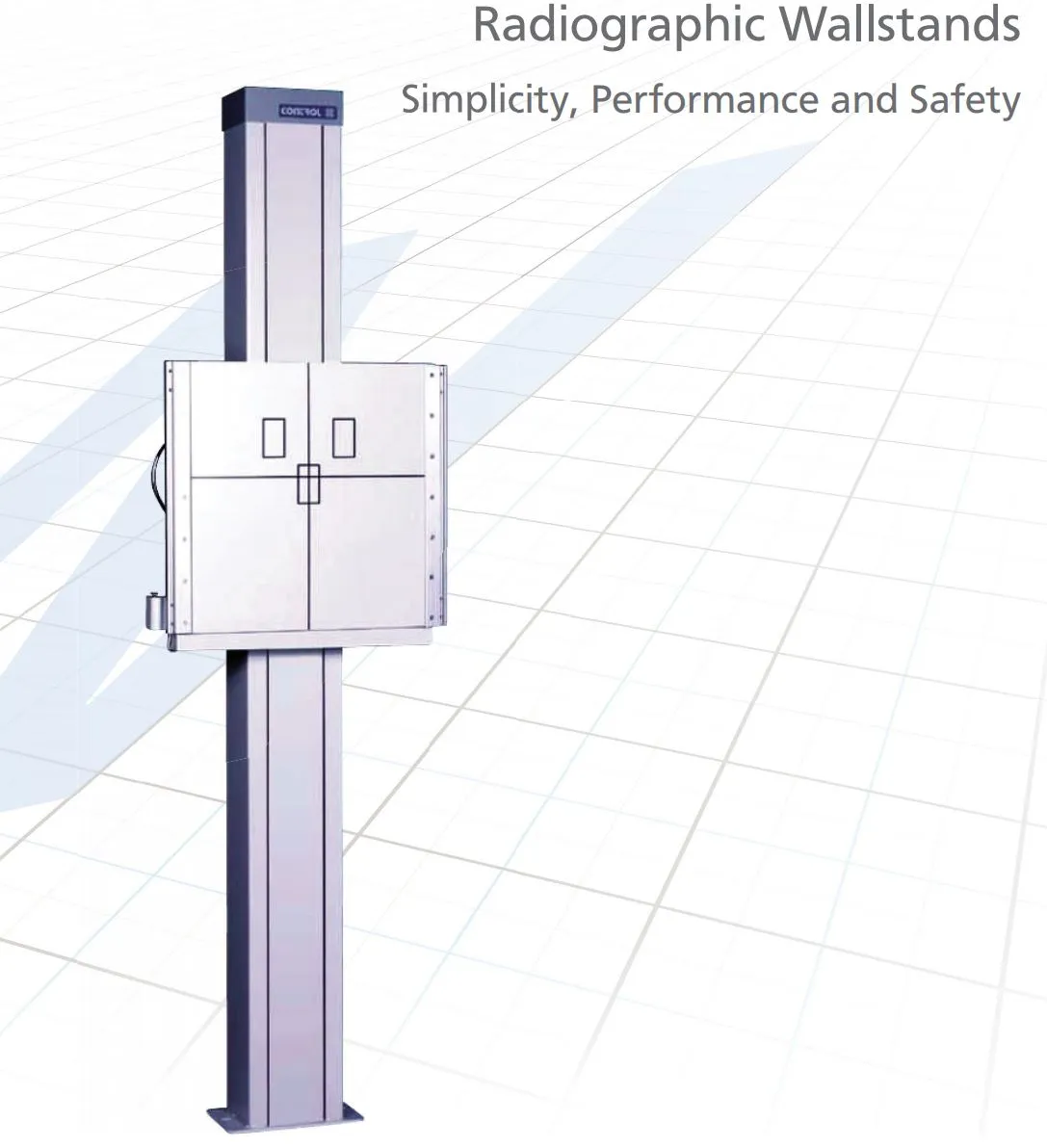

EWS 05
Wallstand includes grid cabinet, electromagnetic locks and deluxe front panel with accessory rails. Minimum required ceiling height 94.5". Column height 88.5", vertical travel of the receptor is 62" and centerline to floor distance is 15.75".
5-year pro-rated warranty.
- Bucky size grid cabinet
- Non-size sensing heavy duty cassette tray for universal 17"x17" Bucky 103 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets.
- Focus range 34-44”
