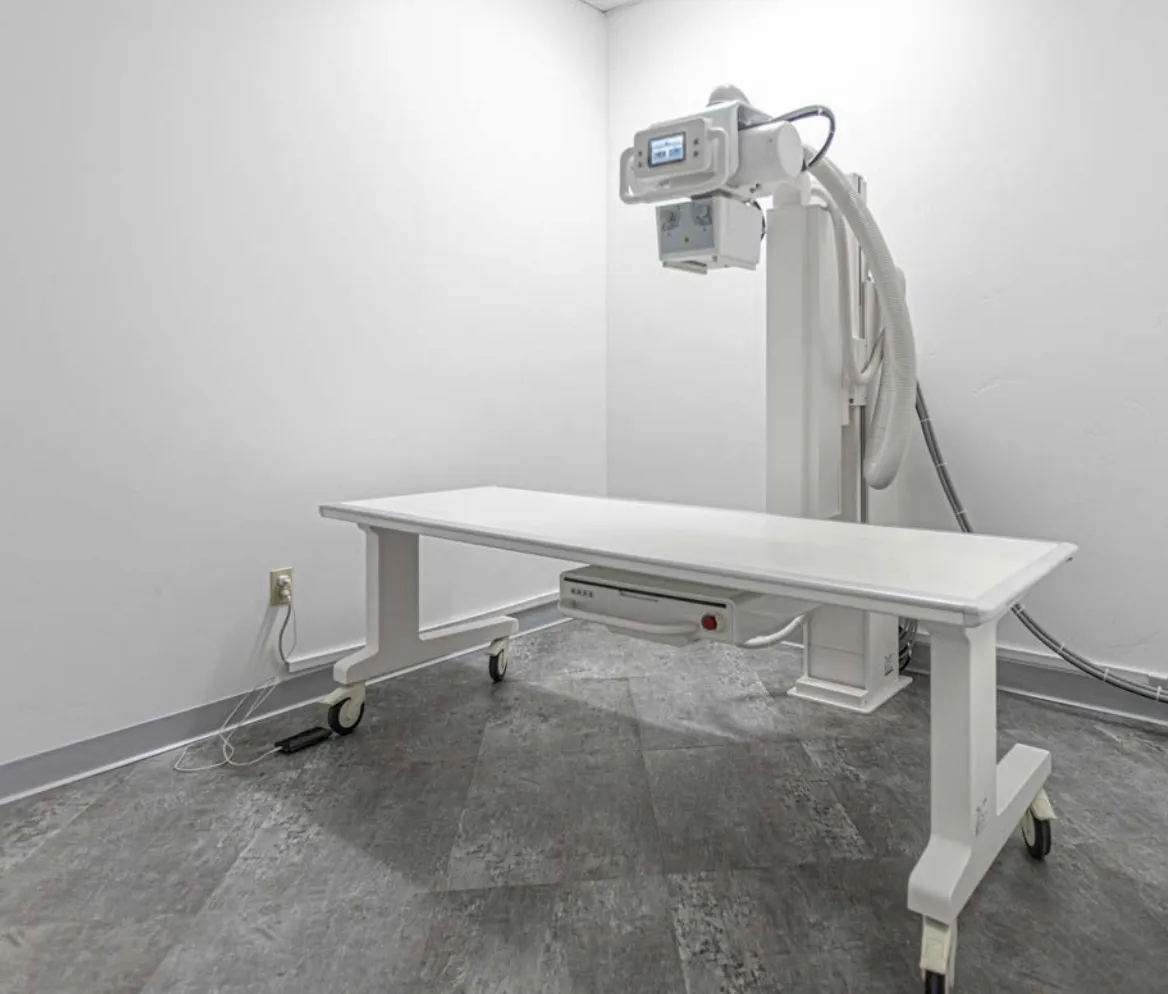

Straight Arm

• Source to Image: 1000 - 1800mm (Continuously Adjustable)
• Arm Rotation Angle: Arms tilts 120°left or right
• Vertical Travel: 400 - 1700mm
• Tube Rotation: ±90°

Detector Tilting: ±45°

X-Ray Generator: 32 kW CPI CMP 200

• High Frequency x-ray generator up to 400 kHz output frequency
• Membrane console with preprogrammed anatomical programs
• Automatic Calibration
• GenWare service utility
• 125kV, 400mA capable
• Input power:1Ф 208V, 3Ф208V or 480V
• (please specify requirements at time of order)

 X-ray Tube

• Model: Toshiba E7242
• Maximum kV: 125
• Anode Heat Capacity: 200 kHu
• Focal Spots: 0.6,1.5
• Stator type: XS-RA

Anti-Scatter X-ray Grid:

• Materials: Carbon Interspaced with Carbon Fiber for superlative image quality
• 103 Line Pair
• Ratio: 10:1

Cables: Claymont High Voltage Cables

• Length: 20 feet (12 meters)
• Terminated at both ends
• One Pair

1 year Labor Warranty

5 Year Parts Warranty
