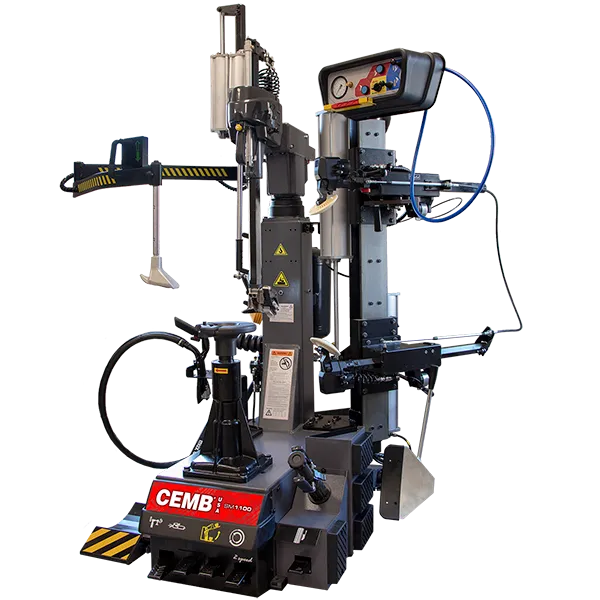

CEMB 12'' - 30'' Rim Diameter, 40'' Tire Diameter Tire Changer SM1100
Product Description
The SM1100 combines the best of multiple tire changer technologies; offering speed and efficiency throughout a wide range of applications. Easily adapts to ultra-low-profile, run-flat tires, special custom rims, every day wheels and even commercial light truck and industrial wheels.
This Italian tire machine is top of its class and will speed up your shop operations easily. Contact Us Today For More Information!
- Center Post
- Wheel Lift
- Bead Pressing System
- Leverless System
- Side Shovel
- Bead Roller System
Features
- Center-post quick lock clamping systems safely secures virtually all wheels without damage
- Easy access to the rim and true from the bottom and site without obscuring the work ears
- Reverse wheel claiming kit included.
- Leverless mount hear provides simple fingertip activated demounting of high-performance low profile, stiff sidewall run flats and commercial use multi-ply tires up to 40″ diameter and 12.5″ wide.
- A bead roller loosening system combines fingertip-operated power using finesse for protective service of difficult, expensive wheels.
- Side shovel adds speed, efficiency, and power to everyday applications
- Heavy duty 220V high torque 2-speed (8-15 rpm)
Specification
| Power Supply | 220V, 1ph, L6-20P |
| Air Pressure | 115-145 psi (8-10 bar) |
| Rim Diameter (Ext.) | 12" - 30" |
| Tire Diameter | 40" (1016 mm) |
| Max. Wheel Width | 15" (380 mm) |
| Turn Table Speed | 8-15 rpm |
| Shipping Weight: | 1125 lbs (510 Kg) |
