GP-6 System, includes Four Way Float Top Table, Non-Rotate
Tube stand, Wall Stand, and 32 kW High-Frequency Generator

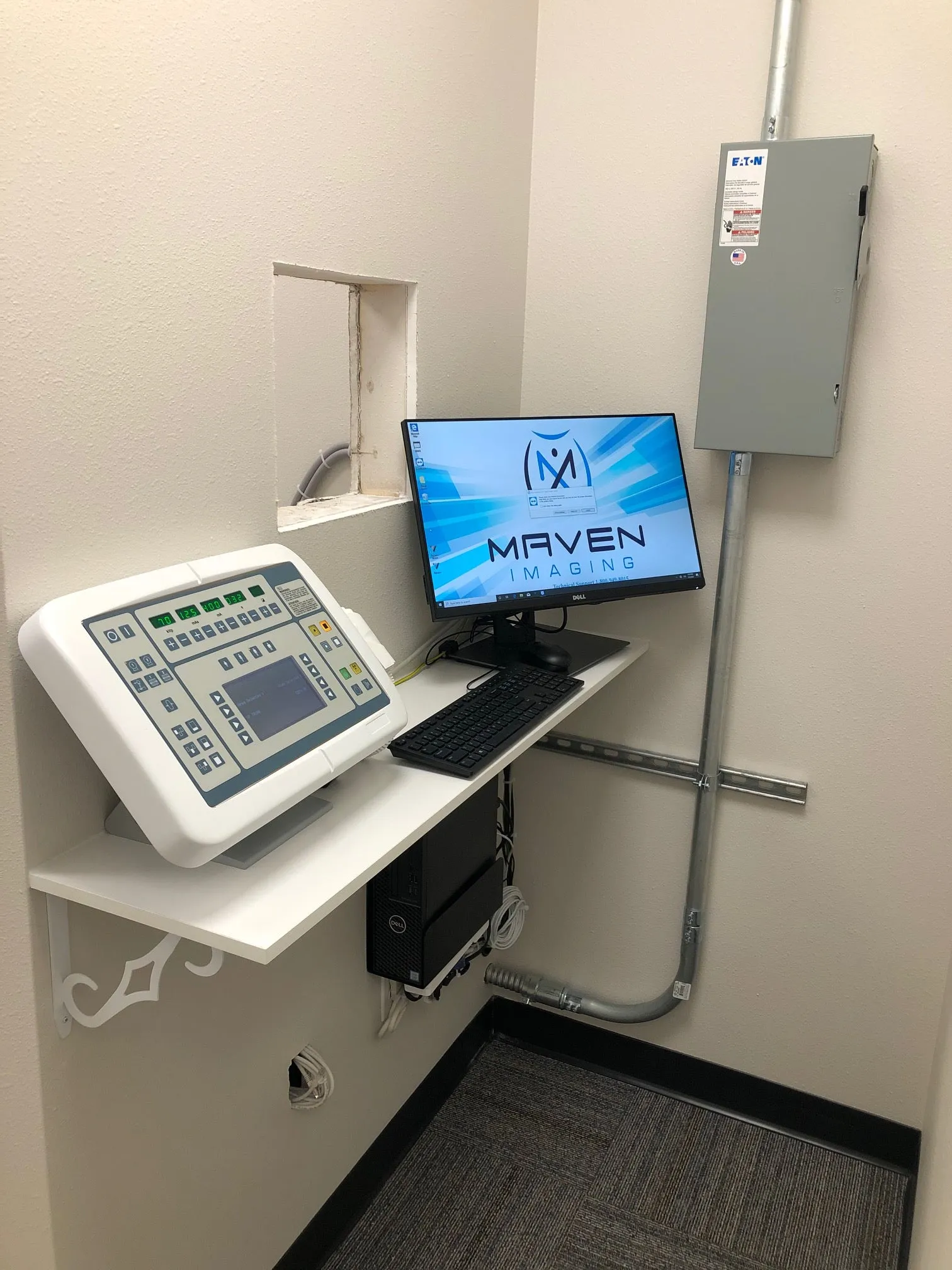

SHF 310AP 32 kW, 400 mA, 125 kVp, 500 mAs HF Generator

•  400 mA, 125 kVp (400 mA @ 80 kVp)
•  Seventeen mA stations: 10, 12.5, 16, 20, 25, 32, 40,
• 50, 64, 80, 100, 125, 180, 200, 250, 320, 400
•  0.001 to 10 second time range
•  0.1 to 500 mAs
•  kVp selection, 40 to 125 kVp in 1 kV increments
•  Digital displays
•  Automatic line compensation
•  APR, Anatomical Programming
•  Table mount
•  Exposure hand switch
•  UL/CE/FDA Listed
•  For Operation on 1 Phase 208/240 VAC

Four-Way Float Top Table, Fixed Height, Multirad

• Tabletop dimensions 86.6" x 32.4" (2200mm x 825mm)
•  Longitudinal tabletop travel 35" ( /-17.5") (900mm)
•  Transverse tabletop travel 9" ( /-4.5") (230mm)
•  Tabletop to Film Distance: 4" (102mm)
•  Bucky travel: 20.3" (581mm)
•  Tabletop to floor distance 30.3" (769mm)
•  Electromagnetic brakes
•  Bucky table top material in white color plastic laminated
•  Full-length footswitch along table base
• • Absorption 0.9 mm al equivalent
• • Heavy-duty grid cabinet
• • Heavy-duty manual cassette tray
•  103 line, 10:1 ratio, 34-44" focal range grid
•  The tabletop will support patients up to 300 kgs (661 lbs)

Floor to Wall Non-Rotate Tubestand, Medical

Fits in ceiling heights of 88" - 121"

•  Vertical travel 11.75" - 76.75"
•  75.2" Longitudinal Travel with 8' floor track
•  21" tube arm (focal spot to the front of column 23")
•  32.2" focal spot from wall
•  Platform tube mount, angulation dial an operator handles
•  Manual lock for tube angulation
•  Electric lock for longitudinal and vertical travel
•  8-foot tracks

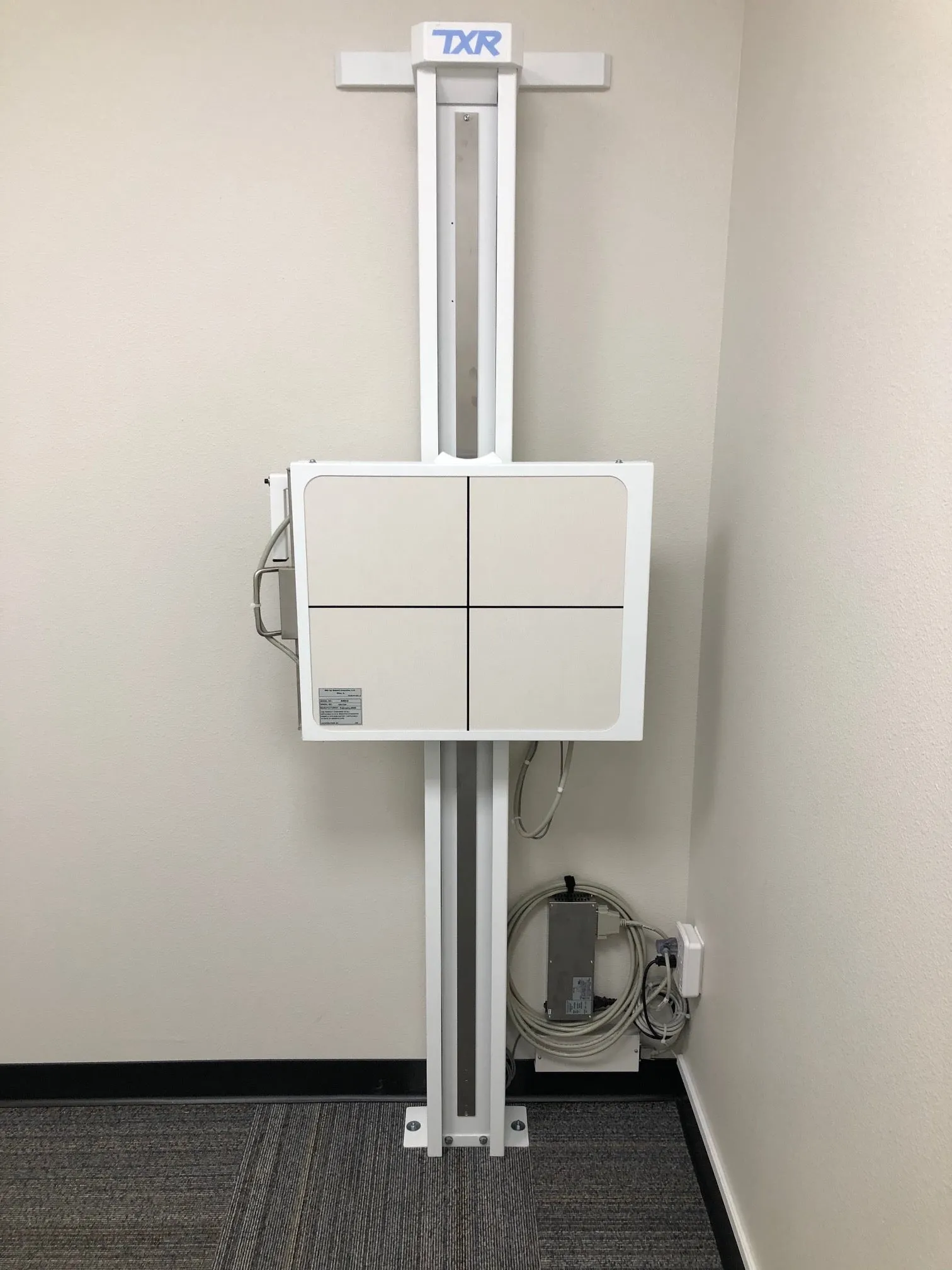

Wall stand with grid cabinet

•  Floor to wall mounted counterbalanced column
•  Minimum ceiling height: 86" from floor
•  Vertical travel: 9-3/4" to 72-3/4"
•  Electric locks (24VDC 2 Amp required)
•  Grid cabinet with heavy-duty tray
•  10:1, 103 line grid
•  Operates on 120 VAC

•  UL Classified operates from 24 VDC

Tube, 140,000HU, 1.0-2.0, 90 deg

Certified Manual Collimator with laser light, LED, 125kVP

20 ft HV Cables

WARRANTY: FIVE YEARS ON PARTS. TUBE IS 1ST YEAR FULL, REMAINING FOUR YEARS ARE PRORATED

Patient Image  14x17 Wireless Flat Panel DR System

14 x 17-inch CSI Wireless, cassette size DR Flat Panel Detector, with advanced acquisition Patient Image software and PACS

System Specifications

14x17 inch CSI Wireless, cassette size DR Flat Panel Detector

• Active area (Real Image Size):
• 360x430 (14x17 inches)
• Overall Dimensions: 344x459x15 mm (13.5x18x0.59 inches)
• Weight: 3.8 /- 0.25 Kg
• Power Consumption: Idle - 3.3 watts, Acquisition - 7.8 watts, Image Transfer - 10.2 watts
• Pixel Pitch: 139 μ m
• Pixel Matrix Size: 3,052 (v) x 2,456 (h)
• A/D Conversion: 16 bit
• X-ray Voltage Range: 40-150 kVp
• Wireless Modes STA or AP: 802.11 a/g/n/ac, 2x2 MIMO
• 2 Batteries, Battery Charger, and Back-up Cable Included
• Automatic Parameter Selection
• Specific Anatomical Post-processing

Patient Imaging Acquisition Software and Mini Pacs

10 Viewer license

Dell Precision 3430 Small Form Factor (Min. Configuration):

• Intel Core i5-8500, 5 Core, 9MB Cache, 3.0GHz, 4.1Ghz Turbo w/
• HD Graphics 630
• Windows 10 Professional
• 1 TB Hard Disk
• 8 GB RAM
• 24 inch Monitor

Workstation pre-configured and with the Software installed

On-site Installation

Training

t

*This product has been permanently discontinued.

Replacement products available.
